Description

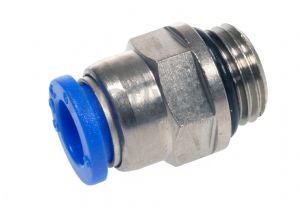

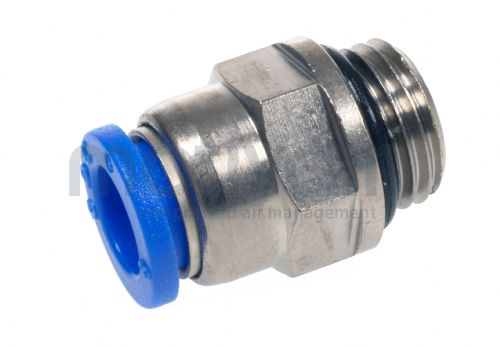

Straight stud push in fitting with parallel BSP male thread suitable for metric outside diameter tubing.

To connect simply push tube into fitting, to disconect press down sleave of push in fitting and pull out tube.

For disconnecting a large number of tubes, the use of a disconection tool is recomended (see related product link).

For imperial od tube fittings see related porduct link.

At Motivair we hold large stocks and several different ranges of push in fitting for a wide range of applications. Whatever your requirements please contact us and a member of our team will be happy to help.

Technical Details

Suitability:	Air (No other type of gas or liquid)
	Do not use in water applications
Working Pressure:	0 to 10 bar
Max Vacuum:	-29.5 in Hg / -750mm Hg (-750 Torr)
Working Temperature:	0 Deg C to +60 Deg C
Application Tube:	Polyurethane and Nylon
Manufacturers Ref:	PC-G

Datasheets

Push In Male Stud BSPP 4 - 16mm od datasheet

Click Here

Prices (Click quantity for more availability info)

Tube Od	Male Thread	Order Code	Available	Each
4mm	G1/8"	146127	25	£1.17
-	G1/4"	146128	13	£1.18
-	G3/8"	146129	0	£1.62
6mm	G1/8"	146130	34	£1.27
-	G1/4"	146131	97	£1.33
-	G3/8"	146132	11	£1.67
8mm	G1/8"	146133	23	£1.52
-	G1/4"	146134	33	£1.55
-	G3/8"	146135	20	£1.72
-	G1/2"	146136	19	£2.55
10mm	G1/8"	146137	0	£1.83
-	G1/4"	146138	30	£1.82
-	G3/8"	146139	39	£1.82
-	G1/2"	146140	30	£2.27
12mm	G1/4"	146141	18	£2.28
-	G3/8"	146142	0	£2.35
-	G1/2"	146143	25	£2.63
14mm	G3/8"	146144	0	£4.42
-	G1/2"	146145	13	£4.47
16mm	G3/8"	146146	12	£6.98
-	G1/2"	146147	22	£7.02

(All Prices Exclude VAT)
