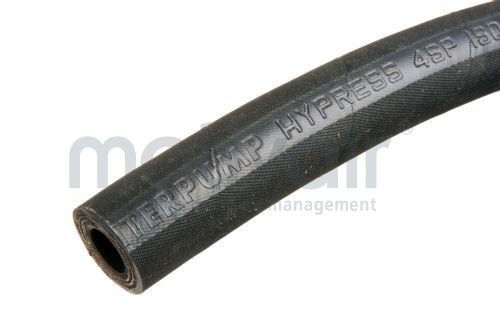

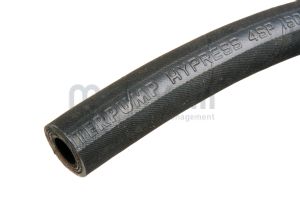

4 wire hydraulic hose 4SP construction suitable for a wide range of applications in industry.
Bore sizes 1/4" up to 2" BSP and maximum working pressure 165 - 450 bar.
This is a highly flexible hose with an anti-abrasive synthetic rubber cover which is resistant to oils, fuels and atmospheric conditions.
Can be used with the following combinations of ferrule and insert:
1. 0009 skive ferrule and "Standard" hydraulic inserts (all sizes -4 to -32)
2. BMC No skive ferrule and "Standard" hydraulic inserts (-6, -16, -20 and -24 sizes only)
3. BMC No skive ferrule and "MultiSpiral" hydraulic inserts (-12 only)
see related products section for ferrules and inserts. Contact us for swaging dimensions.
On request:
Hydraulic hose assemblies made to order
At Motivair we specialise in a wide range of high and low pressure flexible hoses and assemblies to suit many different applications. We can also assist with setting up for you to manufacture your own assemblies. Whatever your requirements, please contact us and a member of our team will be happy to help.
